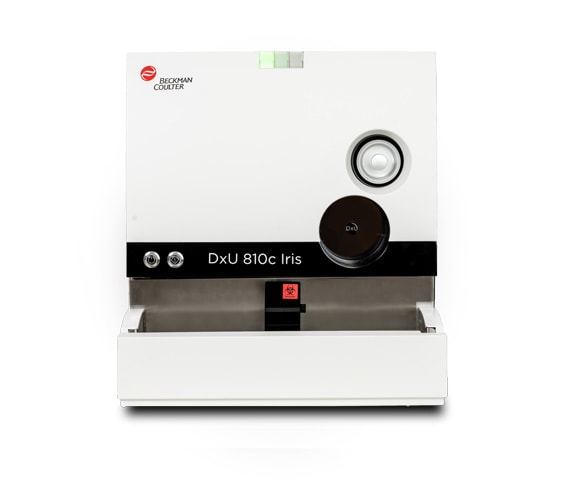

DxU 810c Iris
Urine Chemistry Analyzer

Reliable urine chemistry results without interruptions

The DxU 810c Iris fully automated urinalysis chemistry analyzer delivers reliable results to your laboratory. It features continuous strip loading capability and high throughput with fast turnaround time, bringing a high-capacity urine chemistry analyzer to your laboratory.

Request more info Added Error
Overview
Specifications
Clinical Informatics
Documents
Training
Overview Specifications Clinical Informatics Documents Training
All
Overview
Specifications
Clinical Informatics
Documents
Training


Maximize Laboratory Performance

The DxU 810c Iris urine chemistry system offers high-volume testing and ease-of-use to maximize laboratory performance and productivity
Continuous Strip Loading
Capability and Throughput
210
Up to 210 samples per hour
Fast Turnaround Time
<2
<2 minutes to first results and
then every 15 seconds
Highly Reliable and
Robust Data Storage
300
300-strip load capacity and
10,000-patient record storage

Clinical Confidence Meets Ease-of-Use The DxU 810c Iris urine chemistry instrument offers confidence to your lab and ease-of-use with excellent sensitivity and specificity in urine particle detection.

Enhance the Detection of  Interference

The DxU 810c Iris features an ascorbic acid test pad that identifies possible interference with key chemistry assays. This assay provides clinical confidence with an ascorbic acid detection that helps spot false-negatives or decrease results in blood, nitrite, bilirubin or glucose.

Comprehensive Menu

Evaluate nine standard urine chemistries plus ascorbic acid. The strip includes a color compensation pad to assist in reading highly pigmented samples. Color is read via absorbance, clarity by scattered light and specific gravity by refractometry.

Efficiency through Clinical Informatics

Reduce time-consuming steps with the iWare Data Management Software solution, standard on the analyzer, which provides onboard clinical validation and result verification into a single step without the need for middleware. Increase uptime and improve productivity with optional innovative software solutions including PROService remote service tool, DxONE Command Central remote monitoring and REMISOL Advance middleware.
CHEMISTRY

Menu/Test parameters
  • Test Strip Parameters: Bilirubin, Urobilinogen, Ketones, Ascorbic acid, Glucose, Protein, Blood, pH, Nitrite, Leukocytes
  • System Parameters: Specific Gravity, Color, Clarity

Measurement technology
  • Specific Gravity: refractive index
  • Clarity: measured directly from scattered light
  • Color: measured by transmitted light in the sample using proprietary algorithms

Measurement wavelengths

 472 nm, 520 nm, 630 nm

Test strip

 DxU 810c Iris Urine Chemistry Strip, 100-test vial;
Storage 36-86°F (2-30°C)

Test strip capacity

 1-300 test strips

Sample throughput

 Up to 210 samples per hour

Sample identification and capacity
  • Auto-ID barcode or keyboard entry of ID
  • 10-tube rack system
  • 60-specimen walk-away capability with continuous feed for each system as standalone or as DxU Iris Workcell; up to 200; L/U holds 140 samples and with 60 onboard this is 200

Specimen volume

 Minimum: 2 mL

Aspiration volume

Approximately ~1mL

Data storage

 Onboard storage of up to 10,000 patient results

Communication interface

 Bidirectional with host query

Operating environment
  • Temperature: 64-82°F (18-28°C)
  • Humidity: 20-80%, non-condensing

Electrical power requirement

 100-240 VAC, 50-60 Hz, 3.5A

Dimensions and Weight
  • Width: 20.9"
  • Height: 23"
  • Depth: 25.4"
  • Weight: 100 lbs

Options

 Connection to DxU 850m/840m Iris, load/unload station, PROService,
Command Central, Remisol Advance

Take Command of Your Lab

Labs have the option to connect DxU Iris with our advanced software clinical informatic solutions including PROService, DxONE Command Central and REMISOL Advance.
ProService-2-568x480
ProService
Maximizes instrument uptime and resolves issues with advance remote service access, enabling shortened service times.
Learn more
DxOne command central-3-568x480
DxONE Command Central
Instrument management application that centralize instrument interfaces from a single workstation.
Learn more
REMISOL Advance-1-568x480
REMISOL Advance
Middleware tool that improves efficiency within and across the laboratory network through process automation and standardization.
Learn more
Sort
Relevance
Relevance
Document Title A-Z
Document Title Z-A
Item/Ref No.
Release Date (Newest)
Release Date (Oldest)

View all documents

Tips & Tools

Select Tips & Tools to access helpful documents and information for your instrument.

Step 1: To access content such as job aids, checklists, In-Lab Training Manuals, etc., select the Tips & Tools link in the top left navigation.

Step 2: Select the product name.

Step 3: You will be directed to the product page and access to the product-specific content.

Click here to access Tips & Tools


Intuitive Software Interface

A sleek, intuitive software user interface, a full menu of shortcuts and a beacon light helps identify system-status at-a-glance takes efficiency to another level. Optimize shift-to-shift communication with the system notepad and sticky notes. Boost productivity with onboard user and training manuals.



Educational Resources



Flexible Automated Urinalysis Solution
Scalable for Any Size Lab

The DxU 810c Iris is available as a standalone system or as a part of a fully integrated urine chemistry and microscopy solution.

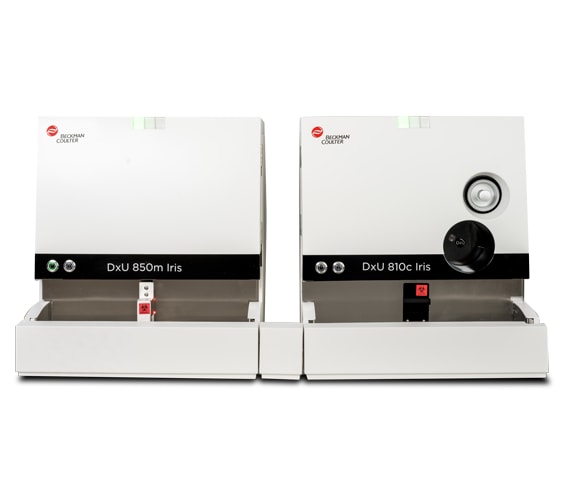

DxU Iris Workcell urinalysis system

Urinalysis Workcell Solution

DxU Iris Workcell fully automated solution takes the interruptions out of urinalysis workflow.

Explore
Urinalysis-microscopy-analyzer-DxU-840m-Iris

Urine Microscopy

DxU Microscopy Series automates sample processing, delivering faster TAT and reducing manual reviews.

Explore
DxH Connected Workcell Solution

Hematology

Hematology analyzers deliver trusted results, streamlining lab workflow and enhancing productivity.

Explore

DxS Service & Support

Confidently minimize downtime, drive efficiency and maximize performance so you can deliver results on time.

Explore
