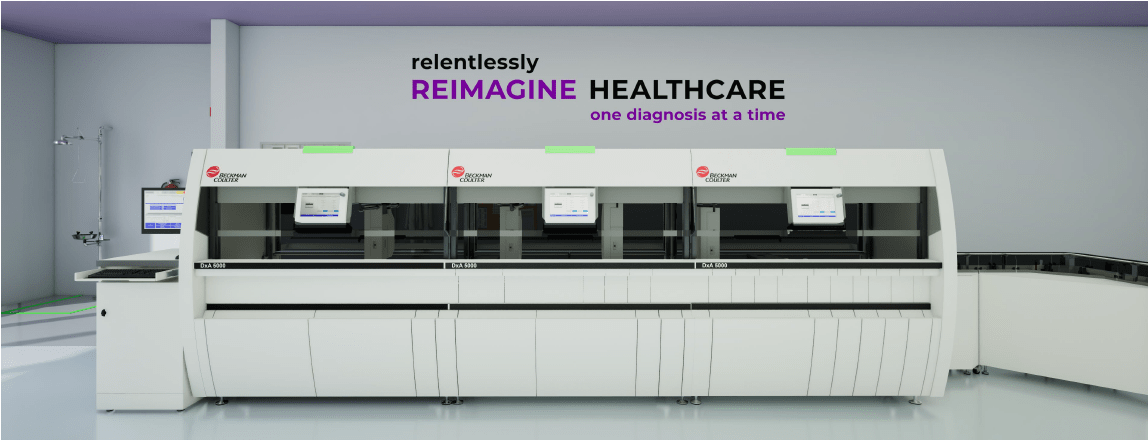

DxA 5000 Total Lab Automation System

Lab automation drives the results that drive you

The DxA 5000 total laboratory automation system and its patented innovations help you deliver quality results and improve high-volume laboratory.

Experience rapid and consistent turnaround time, comprehensive pre-analytical sample quality detection, and fewer manual processing steps.

This product may not be available in your country or region at this time. Please contact your Beckman Coulter sales representative or distributor for more information.
Overview
Specifications
Documents
Connections

DxA 5000 Automation Technology Drives Results

The DxA 5000 total laboratory automation system drives your vision into reality. Proprietary intelligence drives rapid and consistent turnaround times for all samples and reduces manual processing steps. The industry’s most comprehensive pre-analytical sample inspection helps you reduce costs by taking unsuitable samples out of your workflow.



Total Laboratory Automation

The DxA 5000 total laboratory automation system allows you to evolve your hospital laboratory beyond modular automation and into the future.
Dynamically-optimized Turnaround Times:
25 %

With DxA 5000’s intelligent route scheduler, which calculates the most efficient routes for all samples, users have reported turnaround time reductions of up to 25%.*

Quality Detection:
80 %
Identify up to 80% of the most common pre-analytical errors using the industry’s most comprehensive pre-analytical specimen check.
Total Testing Management:
100 %
Control every aspect of your workflow, from accession to archive, through full integration with a middleware data management.

Explore DxA 5000 Features

Click on the image below to learn more

DxA 5000 Total Lab Automation System: Technology for High-volume Laboratories

Clinical laboratories at the forefront of patient care

Increased workloads, faster turnaround times for high-quality results, and cost savings are just some of the challenges you face when technologists in your laboratory are first responders in the patient care pathway.


So, amid mounting pressures, what drives you? The DxA 5000 lets you build a high-performance laboratory that boasts an engaged team, minimal rote tasks, and fast, reliable turnaround times.

DxA Drives Tomorrow's Laboratory

With the DxA 5000, you gain an elegantly orchestrated solution designed to help you overcome current challenges prepare for the future.

Mobile Dimensions

  • Input: 1,710 mm W x 1,362 mm D x 1,835 mm H; 600 kg, 258 kg/m²
  • Output: 1,710 mm W x 1,362 mm D x 1,835 mm H; 620 kg, 266 kg/m²
  • Output + storage rack-builder unit: 1,710 mm W x 1,362 mm D x 1,835 mm H; 640 kg, 275 kg/m²
  • Double centrifuge: 1,710 mm W x 1,362 mm D x 1,835 mm H; 945 kg, 406 kg/m²
  • Single centrifuge: 1,062 mm W x 1,362 mm D x 1,835 mm H; 600 kg, 415 kg/m²
  • Rack-builder unit: 1,062 mm W x 1,571 mm D x 1,835 mm H; 480 kg, 288 kg/m²
  • Small storage unit: 978 mm W x 902 mm D x 2,078 mm H; 620 kg, 703 kg/m²
  • Large storage unit: 1,803 mm W x 902 mm D x 2,078 mm H; 800 kg, 492 kg/m²
  • Server cabinet (with monitor): 730 mm W x 800 mm D x 1,050 mm (1,550 mm with monitor) H; 220 kg, 377 kg/m²
  • End caps: 95 mm W x 880 mm D x 1,740 mm H; 23 kg, 275 kg/m²

Track Dimensions

  • ASSY, main, secondary, drive, dual-tran: 1,162 mm W x 290 mm D x 1,003 mm H; 85 kg, 251.9 kg/m²
  • ASSY, main, primary, drive, dual-tran: 1,100 mm W x 290 mm D x 1,003 mm H; 90 kg, 281.8 kg/m²
  • ASSY, main, drive, single-tran: 1,015 mm W x 407 mm D x 1,003 mm H; 85 kg, 205.7 kg/m²
  • ASSY, main, straight, 1,710 mm, decapper, input-tran: 1,802 mm W x 275 mm D x 1,009 mm H; 100 kg, 201.6 kg/m²
  • ASSY, main, straight, 1,710 mm, recapper, ambient output-tran: 1,802 mm W x 275 mm D x 1,009 mm H; 100 kg, 201.6 kg/m²
  • ASSY, main, straight, centrifuge, dual-tran: 1,802 mm W x 275 mm D x 1,009 mm H; 100 kg, 201.6 kg/m²
  • ASSY, main, straight, queue, 1,250 mm-tran: 1,342 mm W x 290 mm D x 1,003 mm H; 80 kg, 205.3 kg/m²
  • ASSY, main, straight, blank, 1,250 mm-tran: 1,342 mm W x 290 mm D x 1,003 mm H; 75 kg, 192.5 kg/m²
  • ASSY, main, straight, blank, 1,250 mm, rbu-tran: 1,344 mm W x 290 mm D x 1,003 mm H; 80 kg, 205 kg/m²
  • ASSY, main, straight, blank, 938 mm-tran: 1,032 mm W x 290 mm D x 1,003 mm H; 55 kg, 183.6 kg/m²
  • ASSY, main, straight, queue, 938 mm-tran: 1,032 mm W x 290 mm D x 1,003 mm H; 60 kg, 200.3 kg/m²
  • ASSY, main, straight, blank, 625 mm-tran: 720 mm W x 290 mm D x 1,003 mm H; 35 kg, 167.4 kg/m²
  • ASSY, main, straight, crossover, 625 mm-tran: 720 mm W x 290 mm D x 1,003 mm H; 40 kg, 191.3 kg/m²
  • ASSY, main, straight, queue, 625 mm-tran: 720 mm W x 290 mm D x 1,003 mm H; 40 kg, 191.3 kg/m²
  • ASSY, main, straight, blank, 313 mm-tran: 405 mm W x 290 mm D x 993 mm H; 20 kg, 170.1 kg/m²
  • ASSY, main, L-tran: 1,100 mm W x 1,100 mm D x 1,003 mm H; 120 kg, 99.1 kg/m²
  • ASSY, main, T-tran: 1,343 mm W x 779 mm D x 1,003 mm H; 120 kg, 114.7 kg/m²
  • ASSY, main, spur, rhs, dts-tran: 1,722 mm W x 408 mm D x 1,003 mm H; 85 kg, 121.1 kg/m²
  • ASSY, main, spur, rhs, dxl, dts-tran: 1,722 mm W x 408 mm D x 1,003 mm H; 85 kg, 121.1 kg/m²
  • ASSY, main, spur, lhs, dts-tran: 1,722 mm W x 418 mm D x 1,003 mm H; 85 kg, 118.2 kg/m²
  • ASSY, main, spur, lhs, dxi, dts-tran: 1,722 mm W x 408 mm D x 1,003 mm H; 85 kg, 121.1 kg/m²
  • ASSY, main, spacer, 938 mm, spur, dts-tran: 1,030 mm W x 406 mm D x 1,003 mm H; 55 kg, 131.4 kg/m²
  • ASSY, main, spur, dts, passive-tran: 1,343 mm W x 765 mm D x 1,003 mm H; 120 kg, 116.8 kg/m²
  • ASSY, main, straight, 1,250 mm, dtx, dxi-tran: 1,342 mm W x 290 mm D x 1,003 mm H; 80 kg, 205.3 kg/m²
  • ASSY, main, crossover, 1,250 mm-tran: 1,342 mm W x 290 mm D x 1,003 mm H; 80 kg, 205.3 kg/m²
  • ASSY, main, straight, crossover, 938 mm-tran: 1,032 mm W x 290 mm D x 1,003 mm H; 60 kg, 200.3 kg/m²
  • ASSY, main, straight, centrifuge, single-tran: 1,157 mm W x 272 mm D x 1,009 mm H; 65 kg, 206.4 kg/m²
  • ASSY, main, straight, 1,063 mm, spacer, aliquot-tran: 1,157 mm W x 290 mm D x 1,009 mm H; 65 kg, 193.5 kg/m²
  • ASSY, main, straight, 1,710 mm, output-tran: 1,802 mm W x 275 mm D x 1,009 mm H; 100 kg, 201.6 kg/m²

General Power Requirements

  • VAC: 200–240
  • Hz: 50/60
  • Peak current: 20 A max

Module Power Requirements

  • Input: <5 Amp, 1 kW, 3,412 BTU, 860 kCal/hr
  • Output: <5 Amp, 1 kW, 3,412 BTU, 860 kCal/hr
  • Output + storage rack-builder Unit: <5 Amp, 1 kW, 3,412 BTU, 860 kCal/hr
  • Double centrifuge: <5 Amp and 2 x 12A, 5.6 kW, 19,112 BTU, 4,820 kCal/hr
  • Single centrifuge: <5 Amp and 1 x 12A, 3.3 kW, 11.26 BTU, 2,840 kCal/hr
  • Rack-builder unit: <5 Amp, 1 kW, 3,412 BTU, 860 kCal/hr
  • Small storage unit: <12 Amp, .8 kW, 2,832 BTU, 714 kCal/hr
  • Large storage unit: <12 Amp, 1.5 kW, 4,982 BTU, 1,256 kCal/hr
  • Server cabinet: <12 Amp, 2 kW, 6,824 BTU, 1,720 kCal/hr

Transport Power Requirements

  • 1° drive start: <16 Amp, 0.1 kW, 341 BTU, 86 kCal/hr
  • 2° drive finish: <16 Amp, 0.1 kW, 341 BTU, 86 kCal/hr
  • Other active segments: NA, 0.1 kW, 205 BTU, 52 kCal/hr

Input/output Drawer 6x6 Rack

  • Capacity: 36 tubes
  • Dimensions: 149 mm L x 149 mm W, 74.4 mm H
  • Net weight: 250 g

Input/output Drawer 6x14 Rack

  • Capacity: 84 tubes
  • Dimensions: 319 mm L x 149 mm W, 74.4 mm H
  • Net weight: 570 g

Storage Rack

  • Capacity: 105 tubes
  • Dimensions: 132 mm L x 380 mm W, 46 mm H
  • Net weight: 474 g


The DxA 5000 total lab automation system allows you to optimize operations by serving as a connection point for Immunoassay, and Chemistry Analyzers, in addition to coagulation instruments.  The system boasts a four-minute universal centrifugation protocol, potentially reducing the processing time for connected analyzers across the disciplines†, along with a high-level storage process that ensures the fast and efficient retrieval of specimens.

Remisol Advance Middleware Standardize operational efficiency within your laboratory and across your network. This powerful middleware leverages simple, customizable rule writing, integrated quality control management and real-time dashboards to automate data management and drive workflow consistency.
Click here
DxI 600 Scale immunoassay laboratories efficiently with this immunoassay system, which meets peak workload demands with a throughput of up to 200 tests per hour and up to 60 samples on board.
Click here
DxI 800 Accelerate time to results with a true high-volume immunoassay instrument that can process up to 400 tests per hour.
Click here
DxC 700 AU Maximize uptime, increase reliability and precision of results with this innovative chemistry analyzer, which combines the most valuable (and time-tested) features of the popular DxC and AU series. Capable of processing up to 1,200 tests per hour.
Click here
AU5800 Series Increase lab productivity with continuous operation, powerful throughput and scalable capacity up to four modules with chemistry analyzer can deliver up to 9,800 tests per hour.
Click here
DxH 900 Streamline processes with this scalable, customizable workflow solution, accelerating care efficiently with near-native state cellular characterization, while ensuring predictable costs, and maximized staff time.
Click here

Connect with select third party instruments. Contact your sales representative to learn more.


RESOURCES Driving What Drives You

Healthcare norms are changing. How will you drive your laboratory to new heights of speed, quality, control and staff satisfaction? Find out how the intelligence of the DxA 5000 total lab automation system drives optimal standards of laboratory performance.

POSTERPressures Driving Laboratories Towards Automation

Read the top three reasons laboratories are seeking automation, top five metrics used to assess laboratory performance and six challenges today’s laboratories are facing.

ANNOUNCEMENTBest New Clinical Instrument

Beckman Coulter’s DxA 5000 Total Laboratory Automation System won the Scientists’ Choice Award® for Best New Clinical Laboratory Instrumentation of 2019, as well as the Reviewer’s Choice Award for Clinical Customer Service of the Year.

* Protocol requires customer validation.
†The DxONE Inventory Manager can only automatically re-order Beckman Coulter consumables at this time.
†Frankenberger, et al., “Reducing the turnaround time of the pre-analytical phase by application of a rapid centrifugation profile.” Clin Chem Lab Med 2017; 55, Special Suppl, pp S1 - S1121, June 2017.
