The DxA 5000 Fit Workflow Automation System

An automation solution that fundamentally improves lab workflow by making intelligent automation accessible to fit your small- and mid-sized lab needs.

This product may not be available in your country or region at this time. Please contact your Beckman Coulter sales representative or distributor for more information.
Overview
Specifications
Documents
Connections
Configurations

Focus on what matters with the DxA 5000 Fit

When up to 75% of lab errors occur pre-analytically, all laboratories could benefit from comprehensive workflow automation.

The DxA 5000 Fit drives speed and accuracy, all while maintaining a small footprint. It eliminates up to 80% of the manual steps associated with processing a patient sample, allowing you to keep your focus on what matters most: patient care.



Automation for All

While large volume laboratories have long had intelligent automation systems, small- to mid-sized labs have not. That is why we developed the DxA 5000 Fit, an automation solution capable of fitting in virtually any laboratory.
True Connectivity:
0

Capable of multidisciplinary connections

Rapid + Consistent Turnaround Times:
0
Intelligent Routing
Flexible Design:
0
Unique track configurations

Explore DxA 5000 Fit Features

Click on the image below to learn more

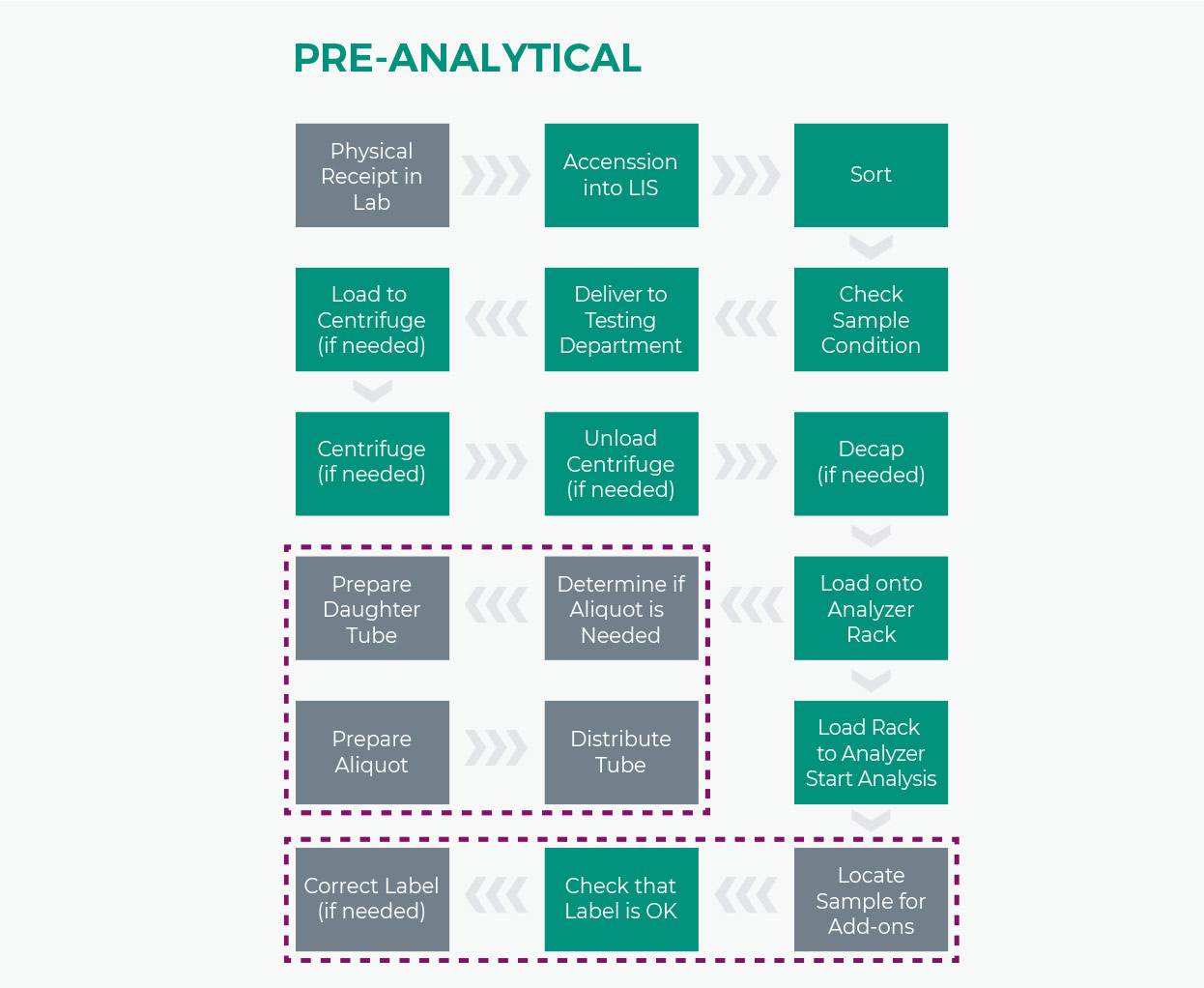

Workflow-diagram-pre-analytical

Workflow-diagram-post-analytical

Module Dimensions

  • Input/Output Module: 1,710 mm W x 1,362 mm D x 1,835 mm H; 580 kg, 271 kg/m²
  • Single centrifuge: 1,062 mm W x 1,362 mm D x 1,835 mm H; 600 kg, 415 kg/m²
  • Rack-Builder Unit (RBU): 1,062 mm W x 1,571 mm D x 1,835 mm H; 480 kg, 288 kg/m²
  • Server Cabinet (with monitor): 730 mm W x 800 mm D x 1,050 mm (1,550 mm with monitor) H; 220 kg, 377 kg/m²
  • End Caps: 95 mm W x 880 mm D x 1,740 mm H; 23 kg, 275 kg/m²

Track Dimensions

  • ASSY, Main, Secondary, Drive, Dual-tran: 1,162 mm W x 290 mm D x 1,003 mm H; 85 kg, 251.9 kg/m²
  • ASSY, Main, Primary, Drive, Dual-tran: 1,100 mm W x 290 mm D x 1,003 mm H; 90 kg, 281.8 kg/m²
  • ASSY, Main, Drive, Single-tran: 1,015 mm W x 407 mm D x 1,003 mm H; 85 kg, 205.7 kg/m²
  • ASSY, Main, Straight, 1,710 mm, Decapper, Input-tran: 1,802 mm W x 275 mm D x 1,009 mm H; 100 kg, 201.6 kg/m²
  • ASSY, Main, Straight, 1,710 mm, Recapper, Ambient Output-tran: 1,802 mm W x 275 mm D x 1,009 mm H; 100 kg, 201.5 kg/m²
  • ASSY, Main, Straight, Centrifuge, Dual-tran: 1,802 mm W x 275 mm D x 1,009 mm H; 100 kg, 201.6 kg/m²
  • ASSY, Main, Straight, 1,250 mm, Dts-Tran 1,343 mm W x 301 mm D x 1,003 mm H; 80kg, 198.0 kg/m²
  • ASSY, Main, Straight, Queue, 1,250 mm-tran: 1,342 mm W x 290 mm D x 1,003 mm H; 80 kg, 205.3 kg/m²
  • ASSY, Main, Straight, Blank, 1,250 m m-tran: 1,342 mm W x 290 mm D x 1,003 mm H; 75 kg, 192.5 kg/m²
  • ASSY, Main, Straight, Blank, 1,250 mm, rbu-tran: 1,344 mm W x 290 mm D x 1,003 mm H; 80 kg, 205 kg/m²
  • ASSY, Main, Straight, Blank, 938 mm-tran: 1,032 mm W x 290 mm D x 1,003 mm H; 55 kg, 183.6 kg/m²
  • ASSY, Main, Straight, Queue, 938 mm-tran: 1,032 mm W x 290 mm D x 1,003 mm H; 60 kg, 200.3 kg/m²
  • ASSY, Main, Straight, Blank, 625 mm-tran: 720 mm W x 290 mm D x 1,003 mm H; 35 kg, 167.4 kg/m²
  • ASSY, Main, Straight, Crossover, 625 mm-tran: 720 mm W x 290 mm D x 1,003 mm H; 40 kg, 191.3 kg/m²
  • ASSY, Main, Straight, Queue, 625 mm-tran: 720 mm W x 290 mm D x 1,003 mm H; 40 kg, 191.3 kg/m²
  • ASSY, Main, Straight, Blank, 313 mm-tran: 405 mm W x 290 mm D x 993 mm H; 20 kg, 170.1 kg/m²
  • ASSY, Main, L-tran: 1,100 mm W x 1,100 mm D x 1,003 mm H; 120 kg, 99.1 kg/m²
  • ASSY, Main, T-tran: 1,343 mm W x 779 mm D x 1,003 mm H; 120 kg, 114.7 kg/m²
  • ASSY, Main, Spur, Rhs, Dts-tran: 1,722 mm W x 408 mm D x 1,003 mm H; 85 kg, 121.1 kg/m²
  • ASSY, Main, Spur, Rhs, Dxl, Dts-tran: 1,722 mm W x 408 mm D x 1,003 mm H; 85 kg, 121.1 kg/m²
  • ASSY, Main, Spur, Lhs, Dts-tran: 1,722 mm W x 418 mm D x 1,003 mm H; 85 kg, 118.2 kg/m²
  • ASSY, Main, Spur, Lhs, Dxi,¬ Dts-tran: 1,722 mm W x 408 mm D x 1,003 mm H; 85 kg, 121.1 kg/m²
  • ASSY, Main, Spacer, 938 mm, Spur, Dts-tran: 1,030 mm W x 406 mm D x 1,003 mm H; 55 kg, 131.4 kg/m²
  • ASSY, Main, Spur, Dts, Passive-tran: 1,343 mm W x 765 mm D x 1,003 mm H; 120 kg, 116.8 kg/m²
  • ASSY, Main, Straight, 1,250 mm, Dtx,¬ Dxi-tran: 1,342 mm W x 290 mm D x 1,003 mm H; 80 kg, 205.3 kg/m²
  • ASSY, Main, Crossover, 1,250 mm-tran: 1,342 mm W x 290 mm D x 1,003 mm H; 80 kg, 205.3 kg/m²
  • ASSY, Main, Straight, Crossover, 938 mm-tran: 1,032 mm W x 290 mm D x 1,003 mm H; 60 kg, 200.3 kg/m²
  • ASSY, Main, Straight, Centrifuge, Single-tran: 1,157 mm W x 272 mm D x 1,009 mm H; 65 kg, 206.4 kg/m²
  • ASSY, Main, Straight, 1,063 mm, Spacer, Aliquot-tran: 1,157 mm W x 290 mm D x 1,009 mm H; 65 kg, 193.5 kg/m²
  • ASSY, Main, Straight, 1,710 mm, Output-tran:1,802 mm W x 275 mm D x 1,009 mm H; 100 kg, 201.6 kg/m²

General Power Requirements

  • VAC: 200–240
  • Hz: 50/60
  • Peak current: 20 A max

Module Power Requirements

  • Input/Output Module: <5 Amp, 1 kW, 3,412 BTU, 860 kCal/hr
  • Single Centrifuge: <5 Amp and 1 x 12A, 3.3 kW, 11.26 BTU, 2,840 kCal/hr
  • Rack-Builder Unit: <5 Amp, 1 kW, 3,412 BTU, 860 kCal/hr
  • Server Cabinet: <12 Amp, 2 kW, 6,824 BTU, 1,720 kCal/hr

Transport Power Requirements

  • 1° drive start: <16 Amp, 0.1 kW, 341 BTU, 86 kCal/hr
  • 2° drive finish: <16 Amp, 0.1 kW, 341 BTU, 86 kCal/hr
  • Other active segments: NA, 0.1 kW, 205 BTU, 52 kCal/hr

Input/output Drawer 6x6 Rack

  • Capacity: 36 tubes
  • Dimensions: 149 mm L x 149 mm W, 74.4 mm H
  • Net weight: 250 g

Input/output Drawer 6x14 Rack

  • Capacity: 84 tubes
  • Dimensions: 319 mm L x 149 mm W, 74.4 mm H
  • Net weight: 570 g

Storage Rack

  • Capacity: 105 tubes
  • Dimensions: 132 mm L x 380 mm W, 46 mm H
  • Net weight: 474 g


The DxA 5000 Fit is a point of connectivity for all your disciplines, comprising of a fully integrated pre-analytical module. The system is capable of multidisciplinary track configurations for Beckman Coulter’s Hematology, Clinical Chemistry and Immunoassay analyzers, combined with coagulation and centrifugation features, bringing true connectivity and automation to labs capable of performing up to 4,000 tests per day.

DxI 600 Scale immunoassay laboratories efficiently with this immunoassay system, which meets peak workload demands with a throughput of up to 200 tests per hour and up to 60 samples on board.
Click here
DxI 800 Accelerate time to results with a true high-volume immunoassay instrument that can process up to 400 tests per hour.
Click here
DxC 700 AU Maximize uptime, increase reliability and precision of results with this innovative chemistry analyzer, which combines the most valuable (and time-tested) features of the popular DxC and AU series. Capable of processing up to 1,200 tests per hour.
Click here
AU5800 Series Increase lab productivity with continuous operation, powerful throughput and scalable capacity up to four modules with chemistry analyzer can deliver up to 9,800 tests per hour.
Click here
DxH 900 Streamline processes with this scalable, customizable workflow solution, accelerating care efficiently with near-native state cellular characterization, while ensuring predictable costs, and maximized staff time.
Click here
Remisol Advance Middleware Standardize operational efficency within your laboratory and across your network. This powerful middleware leverages simple, customizable rule writing, integrated quality control management and real-time dashboards to automate data management and drive workflow consistency.
Click here

Connect with select third party instruments. Contact your sales representative to learn more.

The DxA 5000 Fit can be designed in unique configurations that allow the automation system to fit your lab’s needs. With flexible line customization and a compact footprint, the DxA 5000 Fit can accommodate different workloads and footprints while optimizing laboratory space.

Contact one of our representatives to find out how we can make the DxA 5000 Fit work for you.

Watch Video

From its compact footprint and minimizing manual work by 80%, to intelligent routing that makes sure our acute patients get their results faster than routine ones, the DxA 5000 Fit was just the right fit for us.
AFRUJ RUF
MANAGING DIRECTOR
INTEGRATED PATHOLOGY SOLUTIONS LLP, AIREDALE NHS FOUNDATION TRUST

Watch our latest automation webinars, demos and presentations:

Watch as experts discuss various topics such as the latest clinical insights, challenges in the current healthcare climate and how thoughtful automation can help.

DxA-5000fit

Intelligent routing in a compact footprint:

Deliver rapid and consistent turnaround times, reduce manual steps and benefit from intelligent routing with small- to mid-sized footprint.

Watch the DxA 5000 Fit Demo:

Tune in as our experts discuss automation for laboratories, the increased strain the COVID-19 pandemic has placed on diagnostic lab testing, as well as other exciting topics.

DxA 5000 Fit Demo Video
