DxH 560 AL Hematology Analyzer

Small and mighty from a family with proven reliability and comprehensive data management all in a compact size.

Save time and resources, eliminate manual intervention and deliver high-quality results, even for difficult-draw patient groups, with the DxH 560 AL Hematology Analyzer.

  • Extended QC (eQC): with onboard bias, precision and accuracy monitoring without the need for internet or extra fees
  • Reduce administrative errors and go paperless:: designed to work as hard as you do, the onboard data management in the DxH 560 can host up to 30,000 patient records—equivalent to a year’s worth of tests with typical usage
  • Keep analysis running smoothly throughout the day: store and manage just three reagents, with simple and quick replacement, compared to six reagents with other analyzers in its class

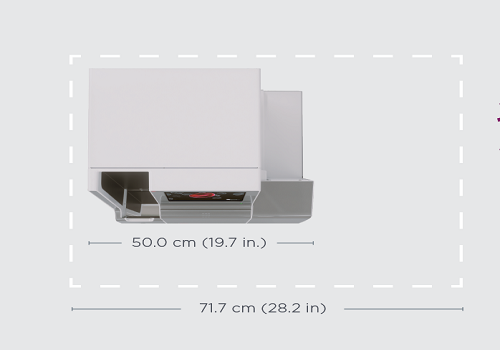

  • Test in tight spaces: with an integrated monitor and keyboard and only one external reagent, the DxH 560 requires up to 1/3 less laboratory counter space than other analyzers in its class

Deliver secure, high-quality, confident results with fewer unnecessary slide reviews within secure, expanded patient database capability

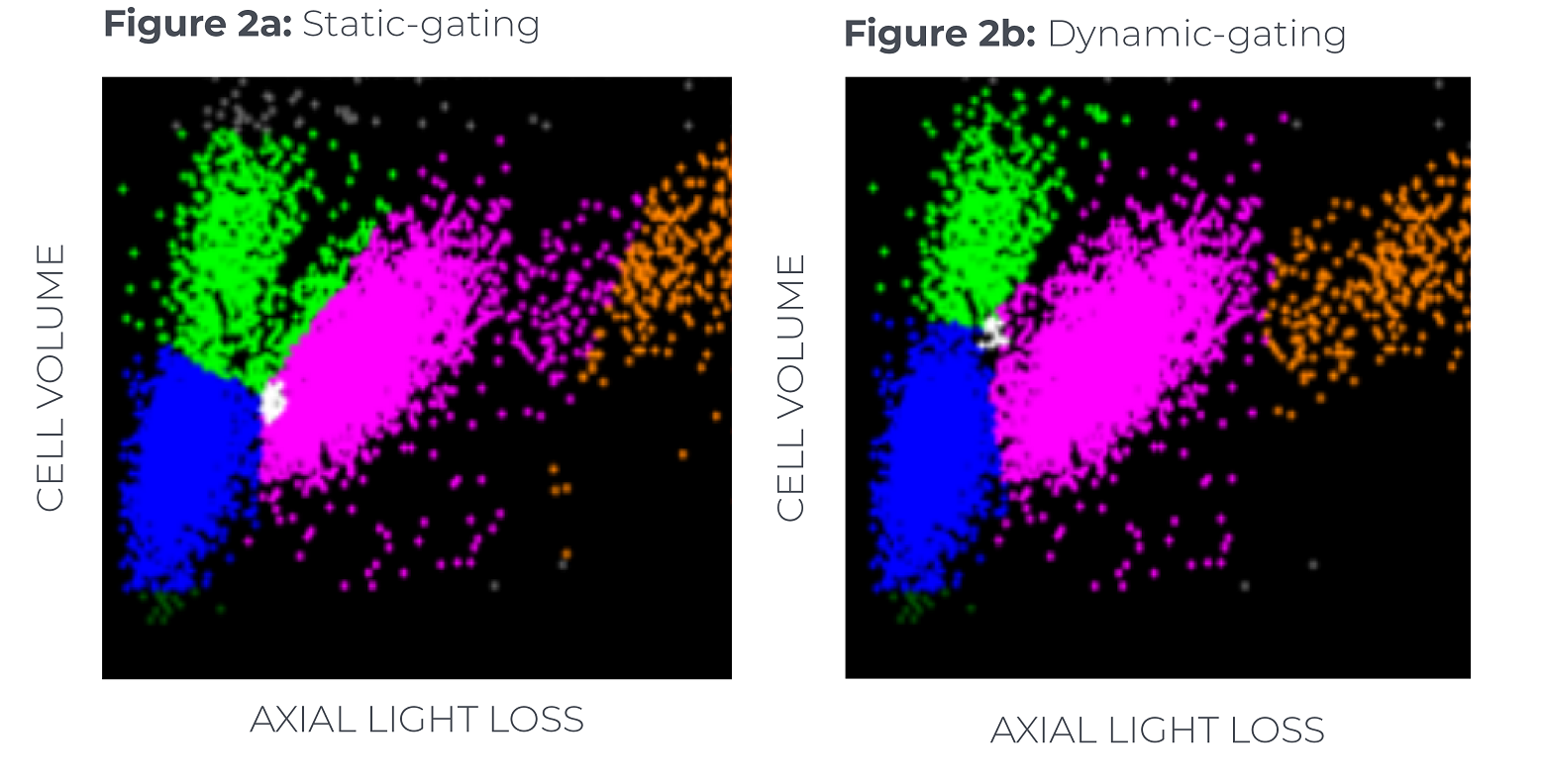

Ensure a more accurate 5-part differential with sophisticated flow cytometry with proprietary dynamic gating technology that reduces flagging by 40% compared to static gating. The sophisticated gating technology in the DxH 560 improves the identification of white blood cells (WBC) populations by automatically adjusting the thresholds between cell-cluster arrangements.(Figures 2a and 2b). More reportable results are seen with more challenging cell populations, such as lymphocytes and eosinophils, giving a more accurate 5-part leukocyte differential than static gating.


Reduce slide reviews with more reportable 5-part differential results while maintaining effective clinical sensitivity and good predicative values.

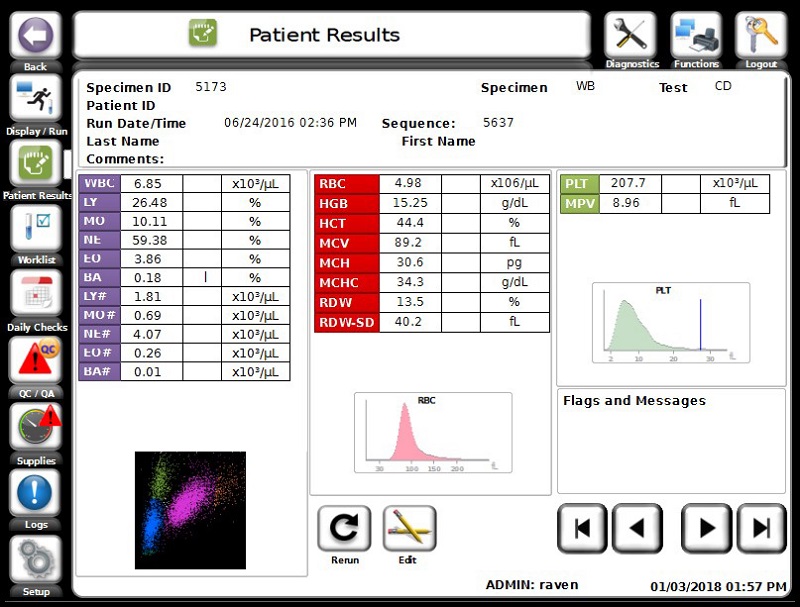

Easily retrieve patient records and conduct seamless delta checks with ample storage capacity – up to 30,000 patient samples. Reduce clerical errors, inefficiencies and risk with a secure bidirectional interface.

Protect patient data with industry-leading privacy and security features, including PHI encryption, account lockout thresholds and time-based instrument logouts.


Improve physician and patient satisfaction

  • With the first draw, meet the needs of difficult-draw patient groups such as infant, geriatric and oncology patients, without compromising on quality
  • Conserve precious samples from infant, geriatric, oncology and other difficult-draw patients. With the DxH 560, laboratories can deliver critical first results accurately, with an aspiration as little as 17 μL
  • Report pediatric results with confidence and with more accurate test result interpretation* based on comprehensive ranges established specifically for the DxH line — the first portfolio of hematology analyzers with comprehensive pediatric ranges
  • Provide peace of mind for your patients with industry-leading privacy and security features — including customizable user login and fully traceable automated timeouts - guarding patient electronic personal health information


High quality results with minimal manual intervention, right on your countertop.


*CALIPER Hematology Reference Standards (II): Improving Laboratory Test Interpretation in Children (Beckman Coulter DxH 520 – Physician Office Hematology System) with Analytical Comparison to Beckman Coulter DxH 900 Victoria Higgins (PhD)a,b,*, Houman Tahmasebi (MSc)a,*, Mary Kathryn Bohn (BSc)a,b, Alexandra Hall (MPH)a and Khosrow Adeli (PhD)a,b*

*American Journal of Clinical Pathology, Volume 154, Issue 3, September 2020, Pages 342–352, https://doi.org/10.1093/ajcp/aqaa057 Published: 11 June 2020
