DxH 900
DxH 900
DxH 900 hematology analyzer
DxH 900
Beckman Coulter DxH 900 LIVE at Truman Medical Center
DxH 900
DxH 900
DxH 900 hematology analyzer
DxH 900

DxH 900 Hematology Analyzer

The right results, the first time

The DxH 900 Hematology Analyzer delivers accurate, first-analysis results through proprietary VCS technology. With fewer slide reviews and high system reliability for maximum uptime, this powerful analyzer streamlines processes to maximize laboratory staff time. The analyzer is compatible with clinical informatics and automation solutions to form scalable, customized solutions.

This product may not be available in your country or region at this time. Please contact your Beckman Coulter sales representative or distributor for more information.
Request more info Added Error
Overview Specifications Documents Training
All
Overview
Specifications
Documents
Training

Achieve superb RBC, PLT and WBC differentials through near native-state cellular characterization

  • Deliver reliable, reportable WBC differential results on the first run, through VCS technology, DataFusion and the enhanced Coulter Principle. These core technologies provide high-resolution characterization without altering cell morphology, providing excellent hematological test results
  • Support critical clinical decisions through advanced PLT analysis. The enhanced Coulter Principle provides a reportable MPV—even for thrombocytopenic patients—while DataFusion leverages inter-module intelligence to enable improved flagging and identification of interferences
  • Assess anemia with accuracy by maintaining near native-state cellular characterization throughout the RBC maturation cycle
  • Facilitate confident slide interpretations through intelligent slide-making. Hemasphere technology analyzes blood viscosity to optimize smearing, and DxH Slidemaker Stainer II ensures consistent slide quality

Ensure predictable costs and >30% faster break-even point

  • Experience low cost of ownership through a 93% first-pass yield and predictable reagent consumption
  • Reduce manual interventions with automated maintenance procedures and less reagent turnover to maximize walkaway time
  • Utilize a new reportable parameter for the emergency department to identify the possibility of infection earlier to stop potentially deadly complications from developing or progressing, helping to reduce the cost of care

Maximize staff time with the most reportable results per square meter, fewer slide reviews and minimal manual interventions

  • Streamline QA/QC processes through customizable, automated technology with daily reminders and remote support
  • Optimize operations through a seamless workflow, small footprint, intuitive software and easy maintenance
  • Maximize efficiency with one-touch sample processing with total laboratory automation and clinical information management tools
  • Save time and improve laboratory workflow through body fluid technology that allows fewer serial dilutions and sample integrity monitoring to minimize risk of spurious results

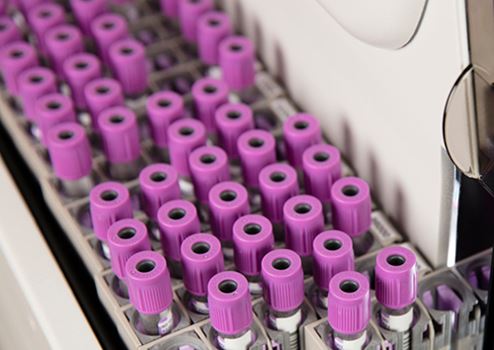

DxH 900 output buffer with cassettes purple tubes

Monocyte Distribution Width

Exclusive to the DxH 900 and 690T analyzers is the regulatory-cleared hematological biomarker Monocyte Distribution Width (MDW) that aids physicians in identifying severity of infection and risk of sepsis in adult Emergency Department patients. This marker is available early in patient assessment as part of a CBC-Diff test with no impact to workflow.

Learn more

Video Impact in Improving Patient Outcomes

Discover how our hematology analyzers has made a huge impact in improving patient outcomes for Patusa Mayfield, Director of Laboratory Services at Christus® Trinity Mother Frances Health System.

Watch video

Available Test Menu
  • CBC: WBC, RBC, HGB, HCT, MCV, MCH, MCHC, RDW, RDW-SD, PLT, MPV
  • Differential: NE, LY, MO, EO, BA, NRBC, NE#, LY#, MO#, EO#, BA#, NRBC#
  • Reticulocytes: RET, RET#, MRV, IRF
  • Monocyte Distribution Width (MDW) (when enabled)
  • Body fluids (spinal, serous and synovial): TNC, RBC, Pleural, Pericardial, Peritoneal

Throughput

 Up to 100 samples/hour

Reagents

 4 required reagents; environmentally friendly methanol- and ethylene glycol-free

Sample Volumes

 165 μL aspiration volume; 0.5 ml dead volume

Power
  • Redundant power computers in a workcell
  • 90–264 VAC and 48–62 Hz
  • DxH 900 SPM: 520 W
  • DxH standard computer: 160 W
  • Monitor: 35 W

Whole Blood Performance—Measuring Range
Parameter  Units  Analytical Measuring Range
 WBC  x103 cells/μL 0.050–2.000
>2.000–100.000
>100.000–400.000
 RBC  x106 cells/μL  0.005–8.500
 HGB  g/dL  0.10–25.50
 MCV  fL 50.00–150.00
 RDW  %  10.00–40.00
 RDW-SD  fL  15.00–150.00
 PLT  x103 cells/μL  3.0–3000.0
 MPV  fL  5.00–25.00


Data Management
  • 50,000 patient results with graphics for standalone
  • 100,000 patient results with graphics for power computer

Quality Assurance



QC with Levy-Jennings graph; XB/XM for moving averages, daily check, intelligent quality monitoring, MRV, IRF, customizable calibration and QC reminders and alerts, auto export of QC

Sample Transport Capabilities
  • Capacity: 20 five-tube cassettes
  • Bar codes: digital bar code with 2D bar code capability
  • Sample ID: up to 22 characters


Reliability

  PROService remote management system: maximum uptime with walk-away troubleshooting and preemptive alerts of instrument issues

Weight and Dimensions
  • Width: 75.57 cm
  • Height: 174 cm, cover closed; 194 cm, cover lifted
  • Depth: 82.80 cm, including removable back panel; 79.25 cm, excluding removable back panel
  • Weight: 254 kg (560 lbs)

Additional Clearance

 3.8 cm behind instrument for sufficient cooling; 15.2 cm per side of instrument for troubleshooting
