MicroScan autoSCAN-4 System

Standardized ID/AST testing made simple

This semi-automated system provides simplified ID/AST testing in a highly reliable and affordable package.

This product may not be available in your country at this time. Please contact your Beckman Coulter sales representative or distributor for more information.

The autoSCAN-4 system processes panels in seconds, simplifying ID/AST while standardizing results. Over 35 years of trusted experience in reliability and conventional panel technology─with the fewest FDA limitations in automated ID/AST─make the autoSCAN-4 an ideal supplemental system for detecting difficult organisms or as a primary instrument for low-volume usage.

The autoSCAN-4 system includes our LabPro Information Manager software and is designed to simplify workflow and minimize technologist interaction, while accommodating differing regional and institutional environments through extensive customization features. Our LabPro AlertEX software automates detection of atypical results for quick reporting and directs staff to the most appropriate action, based upon customized institutional procedures.

  • Operation is easy to learn and use, with minimal training
  • Conventional panels can be processed with direct, non-identification (ID)-dependent MICs, to help you zero in on emerging resistance
  • Specialty ID panels can be processed for reduced turnaround time when speed matters
  • Optional remote diagnostics provide an extra level of service responsiveness
  • Our highly rated service and support teams offer unmatched experience and expertise to ensure the optimal performance of your microbiology service


Physical

  • Dimensions
    • Height: 10 in.
    • Width: 19 in.
    • Depth: 23 in.
  • Weight: 40 lbs.
  • Power cord length: 6.5 in.
  • Cable to computer length: 8.5 in.
  • Digital interface: RS-232C (9600 baud)
  • AC power plug type: 5-15P



Power


  • Line voltage: 105/115/230 VAC ±10%
  • Line frequency: 60/50 Hz ±10%
  • Line current: 2.00A max. (115 V), 1.25 A max. (230 V)
  • Heat generation: 630 BTU/HR
  • Uninterruptible power supply (UPS): Optional



Optical System


  • General: Abridged filter photometer with six interference filters (wavelengths in nanometers: 440, 470, 505, 560, 590, 620), 96-channel fiber optic harness
  • Light source: Tungsten-halogen lamp, 3500 hours
  • Spectral bandwidth: 10 nm


Analyzer


  • System panel capacity: 1 panel/reading
  • Read time: Less than five seconds


Safety Requirements


  • Ground impedance: 0.1 ohms maximum
  • Dielectric withstand voltage: No dielectric breakdown (@ 1000 VAC 60 Hz for one minute)
  • Power cord: 3-conductor, 16 AWG industrial grade SJT
  • Overcurrent interrupter: 1.60 A (115 V), .80 A (220 V)
  • Leakage current: Less than 500 uA


Safety Compliance

The autoSCAN-4 instrument was designed and tested to comply with safety standards UL3101-1, CSA C22.2#1010.1 and EN61010-1 under the following environmental conditions:



Temperature

 5˚C (41˚F) to 40˚C (104˚F)


Humidity

 Maximum 80% at 31˚C (88˚F) to 50% at 40˚C (104˚F)


Altitude

  Maximum 2000 m. (6,561 ft.)


Main Supply

 115/230 VAC, 50/60 Hz, 230 W maximum


Overvoltage Category

  Category II, connected to a branch circuit


Pollution Degree

 Degree 2, normal indoor laboratory environment. Air contains only non-conductive pollutants with occasional condensation.


Emission Compliance

The autoSCAN-4 instrument was designed and tested to comply with standard EN61326.

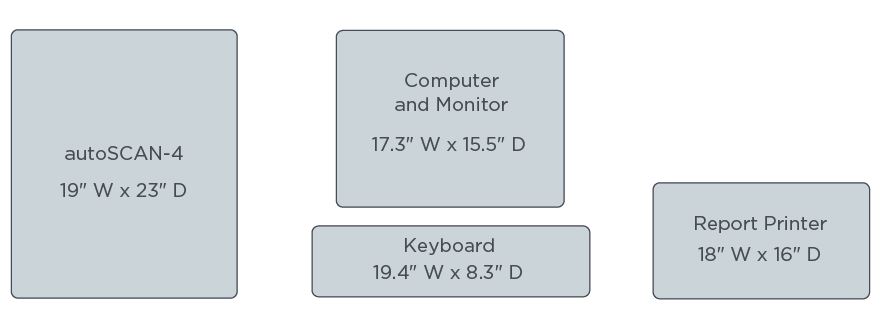

Product and Peripheral Equipment Dimensions

Specifications are for autoSCAN-4 instrumentation only and do not include peripheral equipment. Dimensions for peripheral equipment are informational only and may change without notice.
